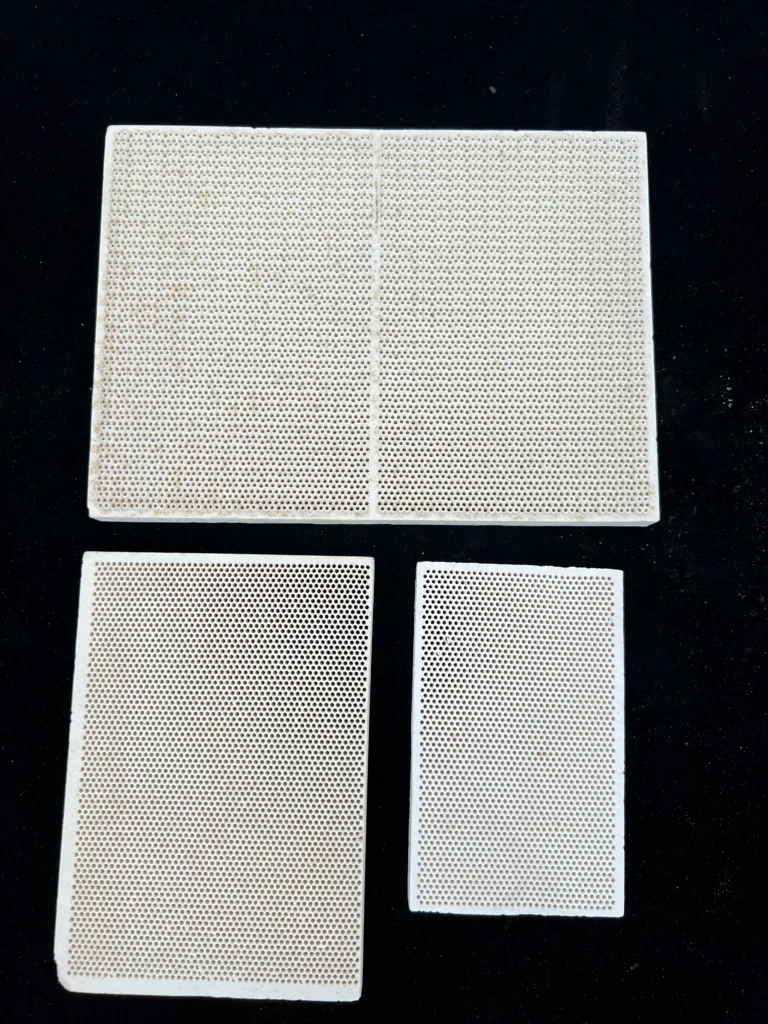

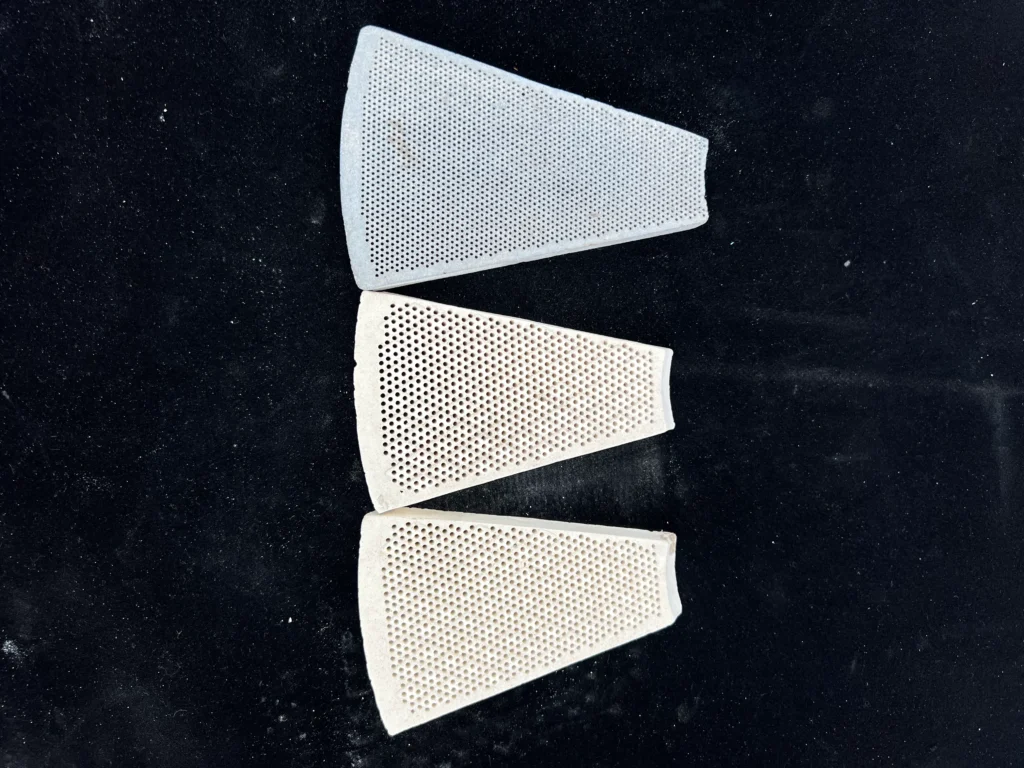

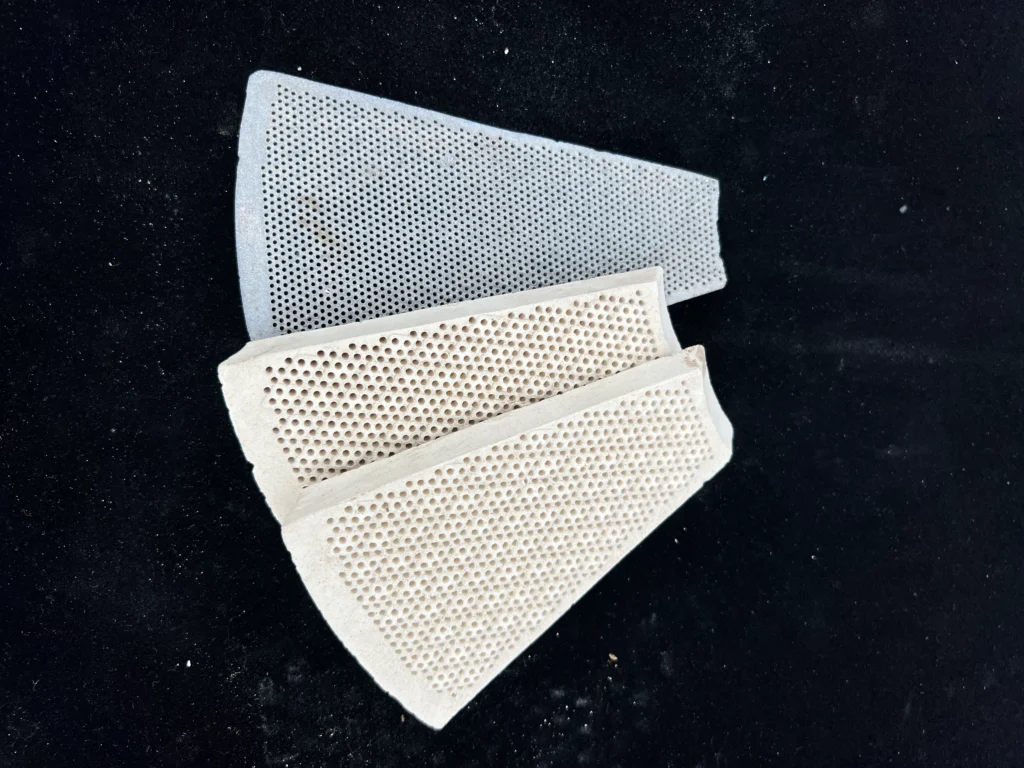

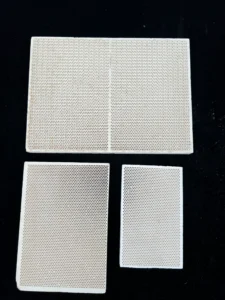

Cordierite Ceramic Sheets and Honeycomb Panels

Product Features and Brief Description Compare flat cordierite sheets with channelled honeycomb panels. Specify plate geometry or channel layout, flow direction, mounting and temperature cycle for review.

Inquire Now
shx@norkeceramics.com

Tags:

Ceramic Plates Cordierite Ceramic Sheets

Product Description
Application
Packaging and Logistics

Product Description Cordierite sheets and honeycomb panels have different geometries and need different enquiry details. A sheet is defined mainly by its faces, thickness and outline. A honeycomb panel also needs a channel description and an orientation within the assembly. For flat sheets and plates Specify length, width, thickness and any holes or cut-outs. Identify the supported area, contact faces and required flatness. Include the fastening method and the clearance around the edges so the component can be reviewed in its installed position. For honeycomb panels Provide the overall size, channel direction, channel geometry and wall requirements. Where the panel is in a flow path, state the gas or liquid, flow conditions, contaminants and any pressure-drop or blockage criteria. A honeycomb shape alone does not establish filtration performance, catalyst activity or emissions compliance. Agree the working and inspection conditions Temperature profile, cycling and surrounding atmosphere. Mounting support, sealing interfaces and possible contact loads. Checks for dimensions, channel condition, edge damage and cleanliness. Material requirement, quantity and any sample-evaluation procedure. For load-bearing kiln fixtures, see cordierite kiln furniture supports. Send NORKE your sheet or honeycomb panel drawing with the intended function and acceptance criteria.
Application Sheet: outline, thickness, flatness, holes and support arrangement. Honeycomb: overall dimensions, channel geometry, orientation and flow requirements. Common review: material, thermal cycle, mounting and inspection criteria.
Packaging and Logistics Identify panel orientation, delicate edges and any requirement to keep channels covered or clear of packing debris. Confirm the packing method and handling instructions with the order.
