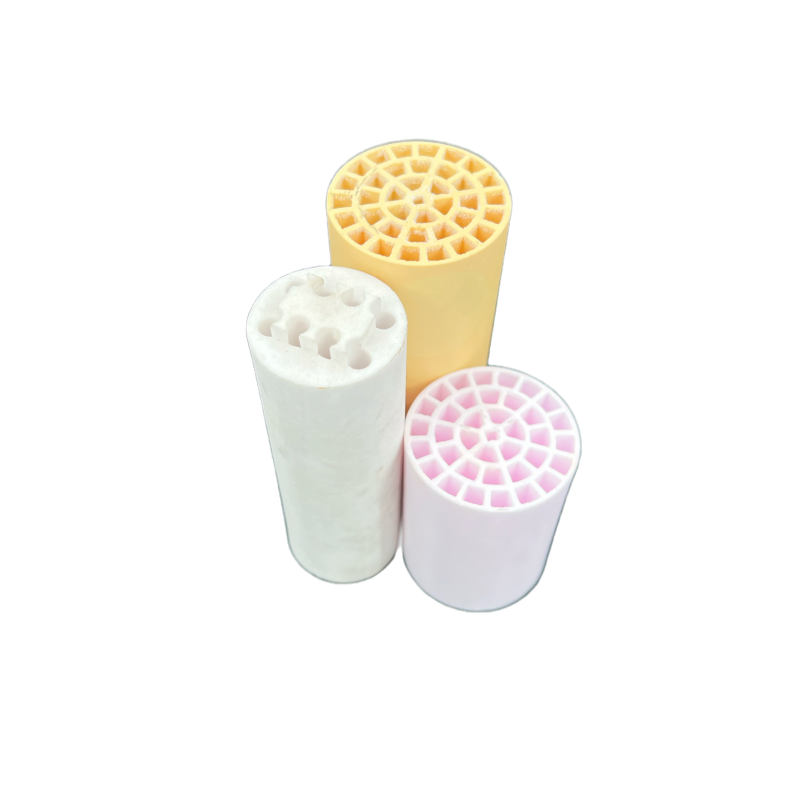

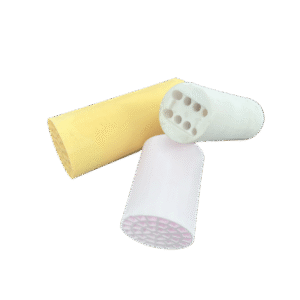

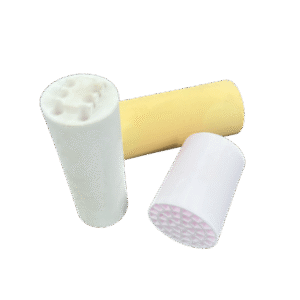

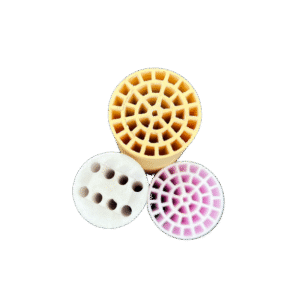

Porous Mullite Ceramic Parts

Product Features and Brief Description Porous mullite component enquiries defined by shape and function. Distinguish insulation requirements from flow-through requirements, then specify the relevant material tests.

Inquire Now
shx@norkeceramics.com

Product Description
Application
Packaging and Logistics

Product Description Porous mullite ceramic parts need a specification that explains why porosity is required. An insulating component and a part intended to pass gas or liquid should not be evaluated only by the same nominal porosity figure. The drawing and test requirements must match the intended function. Define the shape and supported surfaces Provide the outline, wall thickness, openings and mounting arrangement. Identify load-bearing areas, sealing interfaces and any surfaces that will be exposed to abrasion or handling. Include the mating-part dimensions where the fit controls installation. Choose requirements that describe the function For insulation: temperature profile, heat-flow direction, installation space and required thermal data. For flow-through use: medium, pressure conditions, permeability or flow-test requirement, and particle-related acceptance criteria. For either use: mechanical support, atmosphere, cleaning conditions and acceptable dimensional change. If pore size, open porosity or strength must be controlled, state the test method and limit required by the application. Do not use a generic porous-ceramic description as a finished-part rating. Request an application review Send NORKE the drawing, quantity and the material or performance criteria that are already established. If the main requirement is a shaped fibrous insulation part, compare ceramic fiber refractory shapes. Submit a porous mullite enquiry for specification review.
Application Geometry: outline, wall thickness, openings and mounting interfaces. Function: insulation or flow-through use with the relevant test requirements. Review: material, porosity-related criteria, load, temperature and atmosphere.
Packaging and Logistics State any requirements for protecting porous surfaces from dirt or contact damage. Confirm handling information, separation of thin sections and identification of evaluated material variants.
