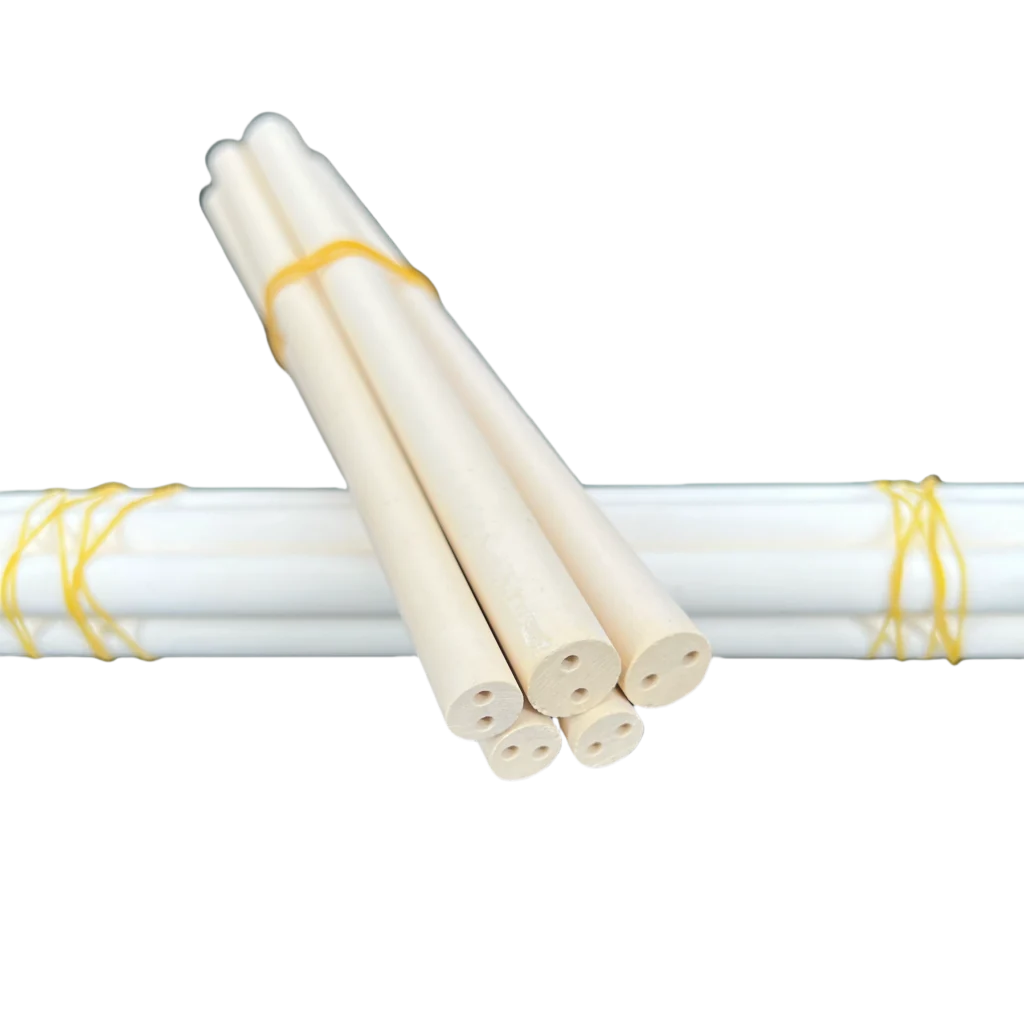

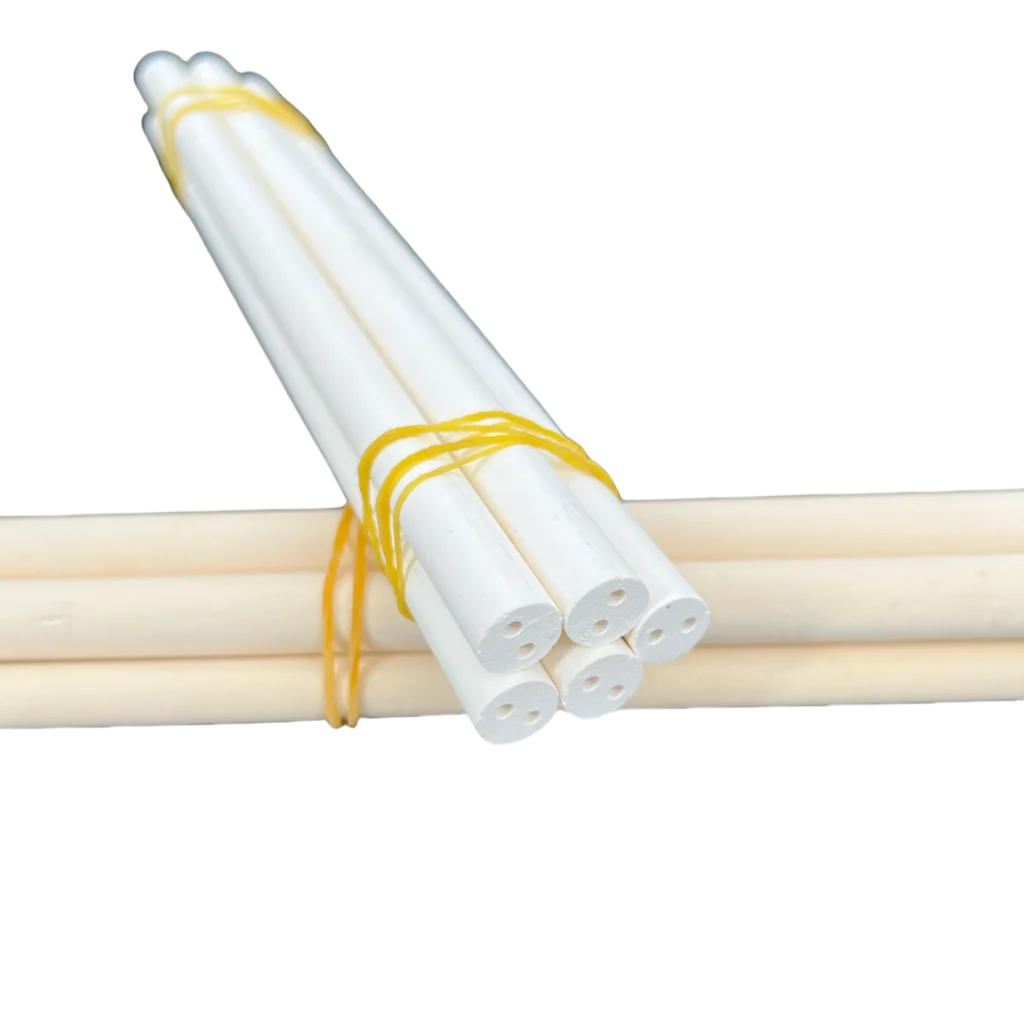

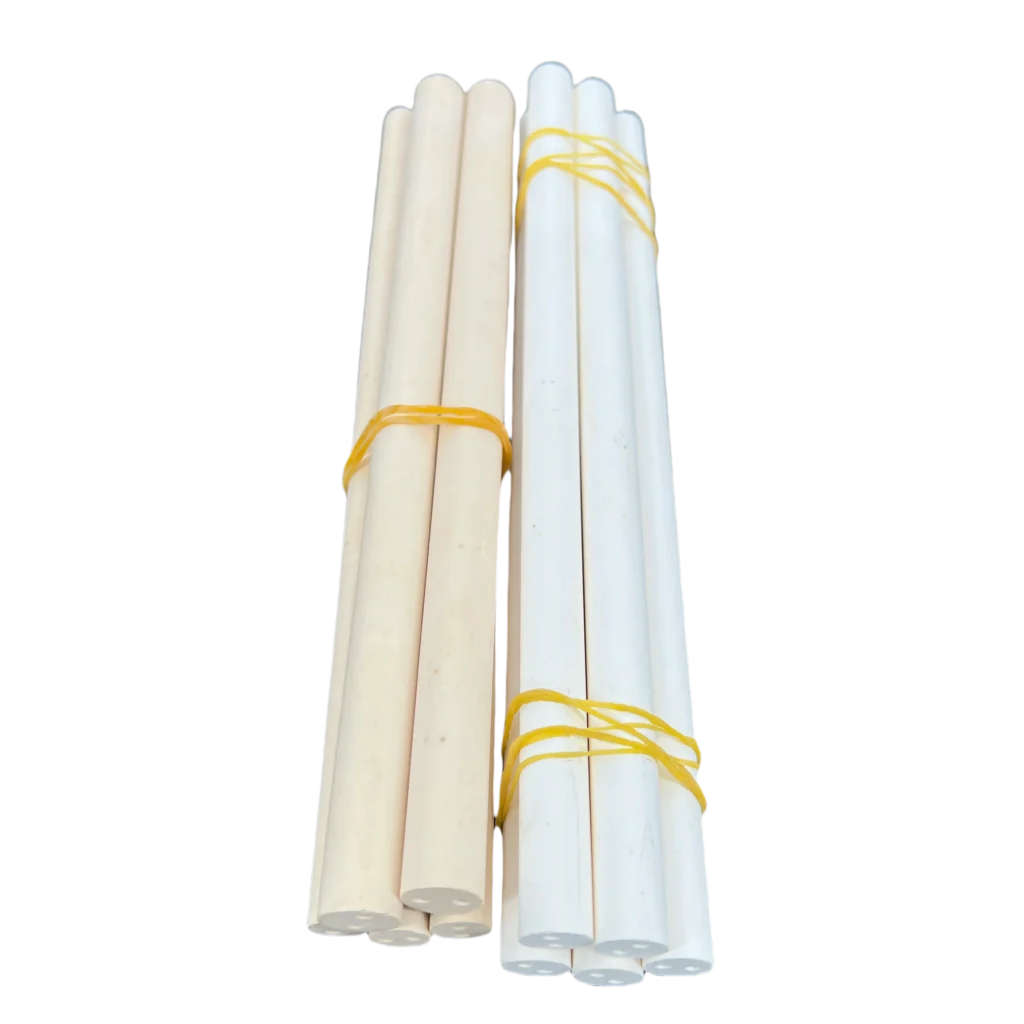

Isolateurs en céramique pour thermocouples

Caractéristiques du produit et brève description Ceramic insulators for separating thermocouple wires within a sensor assembly. Specify bore count, hole spacing, wire size, length and sheath fit.

Renseignez-vous dès maintenant
shx@norkeceramics.com

Description du produit
Application
Emballage et logistique

Description du produit Thermocouple ceramic insulators separate and position conductors within a sensor assembly. The required shape depends on the number of wires, their spacing and the available space inside the sheath or support. The insulator is one component of the sensor, not a complete calibrated thermocouple. Specify the wire and sheath arrangement Number of bores and the wire diameter each bore must accommodate. Outer profile, overall length and any required segmented arrangement. Hole spacing, minimum separation requirements and insertion clearances. Sheath dimensions and the location of the measuring junction. Include end details and any transitions needed for assembly. If wires pass through a sequence of insulators, show how the pieces align and how the assembly is retained. Review the service conditions State the working temperature profile, atmosphere, vibration and possible contact with process substances. Specify the ceramic grade when it is defined by the sensor design, or request material information for evaluation. Required electrical checks should name the test conditions and acceptance criteria. Enquiry information Send a drawing or dimensioned sketch, wire and sheath details, quantity and any inspection requirements. For other insulating shapes, browse céramiques électriques. Contact NORKE about thermocouple insulators with the sensor assembly details needed to review fit.
Application Geometry: outer profile, length, bore count, hole size and spacing. Assembly: wire diameter, sheath fit, junction position and retention. Conditions: temperature, atmosphere, material requirement and electrical acceptance tests.
Emballage et logistique Indicate whether long or small-bore insulators need individual separation and bore protection. Confirm quantity labels and identification where several hole patterns are ordered together.
